Fire Vehicles

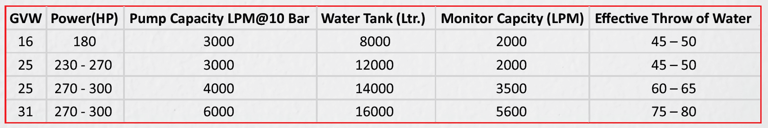

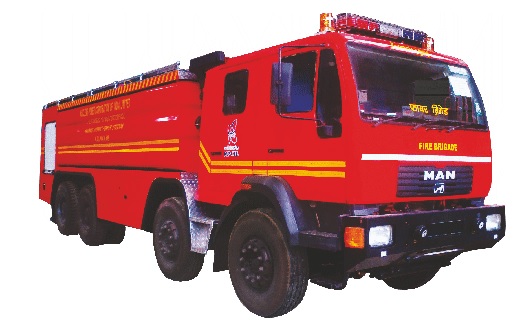

WATER BOWSER
Product Description
Contains Large Quantity of Water with High velocity Pump
Use to Support Fire engines for continues Water Supply and
Used in Heavy Fire for Constant Throw of Water
Used by Municipal Corporation and State fire services, Refineries and petroleum
Thermal Power station and Institutions

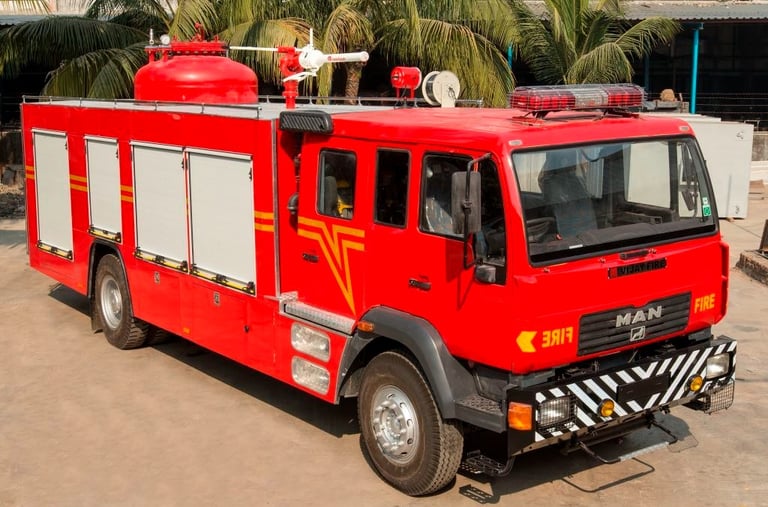

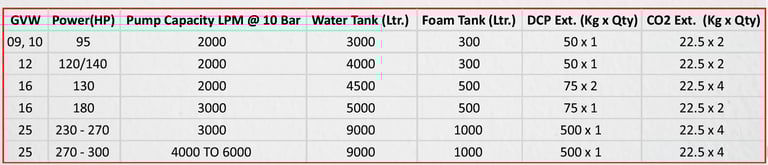

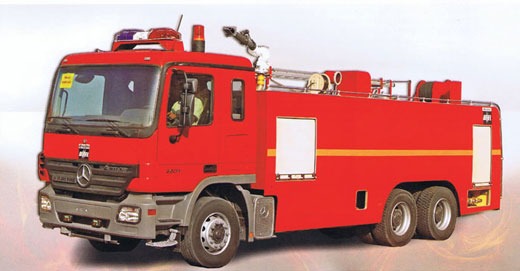

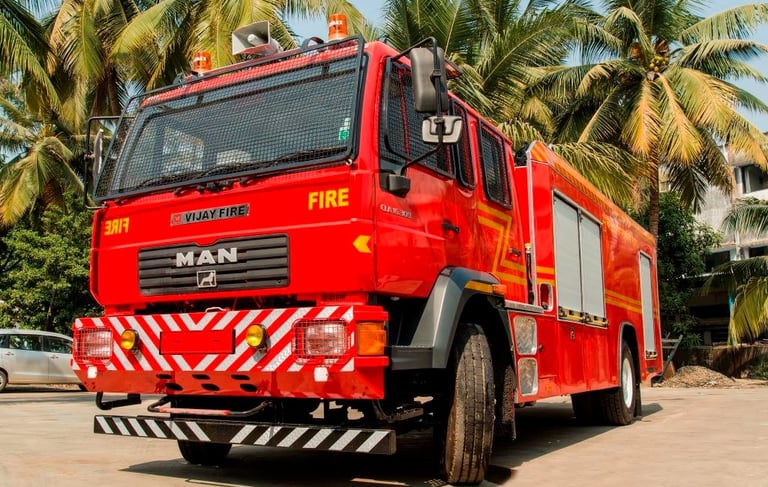

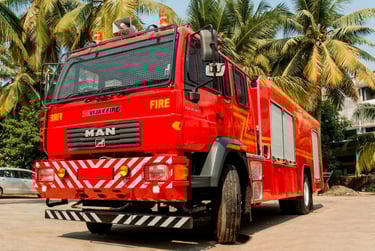

WATER / FOAM / MULTIPURPOSE FIRE TENDER
Product Description
Construction available from Basic to Advance Fire Tender
First Attack vehicle used by all safety and Emergency department.
Vehicles Available with various ranges from 9-tons to 25-ton chassis
PTO Driven Centrifugal Type Fire pump up to 6000 LPM indigenous or Imported
Water & Foam Tank of suitable capacity as per environmental condition
Various Equipment and Accessories as per Standard and requirement by customer
Light Mast, Winch, and Rescue equipment available as option.
Applications
First Attack Vehicle
Municipal Corporation, State Fire Services
Refineries, Petrochemical, Oil and Gas
Thermal Power plant, Mining Industries
Institution, Private sector, Township Project
Terminal Ports Etc.

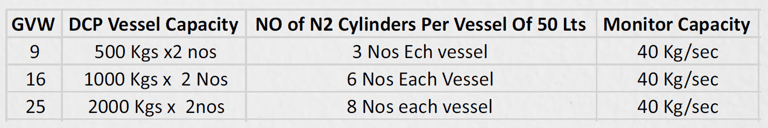

DRY CHEMICAL POWDER TENDER
Product Description
DCP Capacity available 1000 Kgs, 2000 Kgs and 4000 Kgs mounted on 12 ton, 16 ton and 25 ton chassis respectively
Suitable Quantity of Nitrogen cylinder as an expellant gas with respective to capacity of vessel
100 % standby N2 cylinders
CE Marked Hose reel and Monitors available for discharge of DCP
Dry Powder with ISI or UL marked can be supplied
Used in Thermal Power plant, Ports, Oil terminals, Oil gas and refineries.

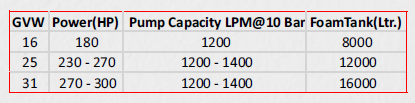

FOAM NURSER
Product Description
Foam Nurser is a mobile re vehicle used to replenish the foam compound in the foam tenders / Trailer mounted
foam tank monitors at emergency site
Chassis of Reputed Makes conrming to Prevalent Emission Norms and country Regulations. Available Options
are Scania, Mercedes, Volvo, Bharat Benz, Mahindra, Eicher, Ashok Leyland and TATA.
Pump: Positive displacement type Gear Pump is fitted at mid –ship / rear of the Foam Nurser vehicle.
Power Take Off: Transmission Mounted Power Take Off unit preferably supplied by chassis manufacturer is use to
drive the foam pump.
Foam Tank: A High Capacity foam tank of Stainless steel material is installed on vehicle with respect to the design
capacity of the chassis.
Application / Users: - Petrochemical, Reneries, Oil and Gas Industries. Ports, Gas station

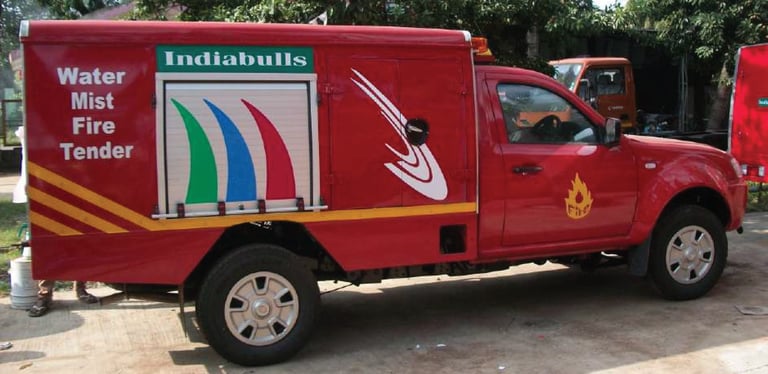

QUICK RESPONSE VEHICLE
Product Description
Quick response vehicle which is also called as First response vehicle is built on small commercial chassis of
reputed make like Isuzu, Ford, Force, TATA, Mahindra, Eicher Ashok Leyland etc.

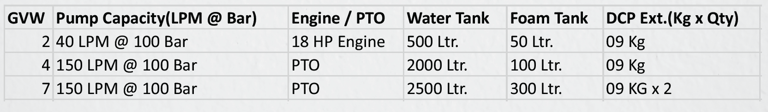

Ultra High Pressure water mist technology installed in vehicle with Plunger pump of imported reputed make.
The Ultra high pressure pump is either driven by Transmission mounted PTO or auxiliary engine with respect to the performance requirement.
Water Tank of suitable capacity with respect to chassis payload is designed and installed on vehicle. The material of
construction of tanks is suggested as per the environmental condition and application. The MOC shall be Stainless
Steel / Poly-propelyn / GRP,
Foam tank of required capacity with respect to application and design is provided with MOC Stainless steel / GRP / Poly-propelyn
Automatic rewind Hose reel is provided with Hose of 19mm dia X 30 mtr long. Hoses used in for Water mist is tested
for more than 100 bar working pressure and 200 bar Bursting pressure.
Accessories: - Considering First responder, Vehicle is occupied with Rescue tool, Entry tool, BA set, small Gears,
Chain saw etc. Light Mast and 2-ton Winch shall also be provided as per the requirement of customer.

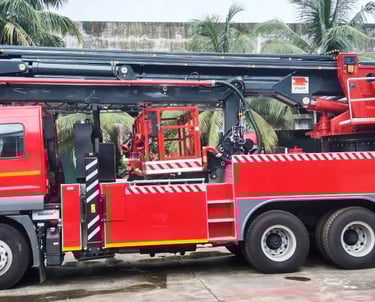

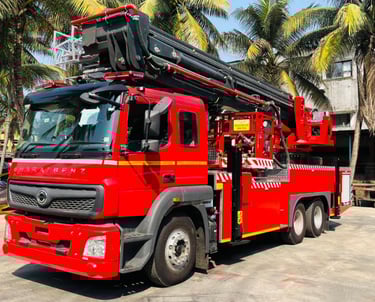

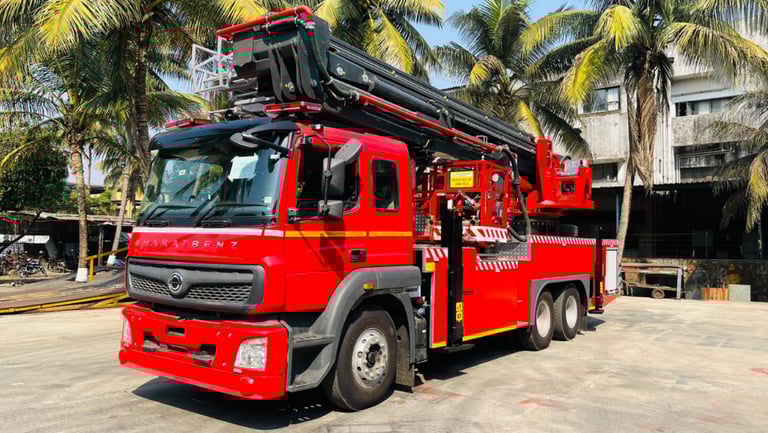

18-55 Mtr Aerial Ladder Platform
Expansion is essential in humankind development, and when there is no space in width, we go to the high...
As the buildings gets higher and higher, so does our trucks! we provide ladder trucks from 12 to 55 MT high.
With such high you need speed, that's why our special technology can provide a reach from 0 - 55 MT in just 40 second
Water and foam tanks as well as fire pumps capacities are custom design for each configuration based on application and chassis preference
Technical Specifications
Aluminium Chess
‘X’ or 'H' type outrigger and jacks
Rescue cage monitor
Automatic balance
Ladder can be controlled from rescue basket and
main control centre (TTL)
Elevator system
Telescopic water line
Stretcher place
Load hook 2500Kg MAX.
Oscillation stop system
12-42 Mtr Turn Table Ladder
Water and foam tanks as well as fire pumps capacities are custom design for each configuration based on application and chassis preference.
Technical Specifications
Aluminum Chess
‘X’ or 'H' type outrigger and jacks
Rescue cage monitor
Automatic balance
Ladder can be controlled from rescue basket
and main control center (TTL)
Stretcher place
Telescopic water line
Load hook 2500Kg MAX.
